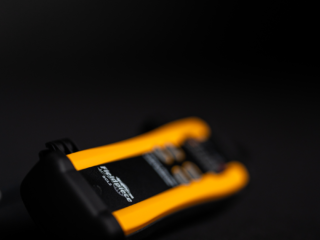

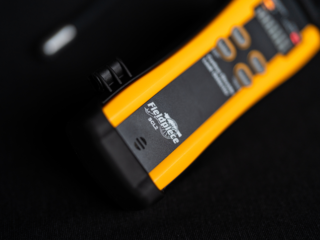

Carbon Dioxide Leak Detector
Our Carbon Dioxide Leak Detectors are high-performance and built to last.
- Long-life sensor of up to 10 years;
- sensitivity of 6g/year;
- clear visibility on LED indicator.
The durable SCL2EUR is designed so technicians can find tiny CO2 leaks fast.
Where to buy
Overview
Three reasons you need our SCL2EUR
1. Designed to last
Worrying about the sensor giving out shortly after purchasing the tool is now in the past! The SCL2EUR has a long-life sensor of up to 10 years and it has been designed so you can take it to many jobs.
2. Detect the smallest leaks
The SCL2EUR comes equipped with three sensitivity levels and the sensor can detect CO2 leaks down to 6 g/year to ensure you can find even the smallest of leaks.
3. Easy-to-view
The SCL2EUR comes equipped with a LED indicator so you can easily and quickly view all the measurements you need.
Specifications
Product
- Sensing element: Enhanced infrared photo optics
- Sensor life: Up to 10 years
- Refrigerants: R-744 Carbon Dioxide (CO2)
- Sensitivity Levels:
- High: Up to 6 grams/yr
- Medium: Up to 14 grams/yr
- Low: Up to 28 grams/yr - Response time: 1 second
- Recovery time: ~4 seconds
- Auto off: 10 minutes after no activity
- Battery: 3.7VDC(nominal), rechargeable lithium ion user-replaceable battery
- Battery life: 8 hours continuous use prior to needing a charge. Degradation (30%) after 500 charge/discharge cycles or two years, whichever comes first
- Low battery LED: Lights when approximately 1 hour of battery life remains
- Charge time: Less than 4 hours (either charger)
- Operating environment: 0°C to 40°C at <75%RH (non-condensing)
- Storage environment: <80%RH meter and batt
- For 80% battery recovery: -20°C to 60°C less than 1 month -20°C to 45°C less than 3 months -20°C to 20°C less than 1 year
Included in package
- Carbon Dioxide Leak Detector – SCL2
- 229 mm (9″) Needle Tip Probe
- 229 mm (9″) Flex Extension Tip
- 10x Moisture Filters
- O-rings
- Wall Charger
- Car Charger
- Blow Molded Hard Case
Media
Get to know the SCL2EUR | Fieldpiece Europe
Frequently asked questions
When should I replace the filter?
If it seems like your leak detector is no longer picking up leaks or is not as sensitive as it was when you first bought it, replace the filter.
How do I replace the sensor?
The SCL2 does not require a replacement sensor, it will last the lifetime of the instrument.
How do I use low/medium/high/turbo
Set the sensitivity level by pressing the L/M/H button. Low (L), medium (M), or high (H) sensitivity will be indicated by the respective LEDs. The higher the concentration of refrigerant in the ambient air, the lower the sensitivity setting should be to minimize false trips. The TURBO function is an additional 4th sensitivity that pushes the SRL2 to it highest possible sensitivity. This feature is activated by pressing the PEAK button four times in succession, and can only be activated while on the high(H) sensitivity level. The TURBO function is an additional 4th sensitivity that pushes the SCL2 to it highest possible sensitivity. This feature is activated by pressing the PEAK button four times in succession, and can only be activated while on the high(H) sensitivity level.
