VP87 - 8 CFM Vacuum Pump

Reliable, versatile and powerful.

Overview

8 CFM Vacuum Pump

Reliable, versatile and powerful.

The VP87 is also available in a European model (VP87EU), a UK model (VP87UK230) and a 110V UK model (VP87UK)

8 CFM flow rate with 15 microns ultimate vacuum
A2L certified
¾ HP DC motor for power-to-weight and low voltage operation
RunQuick™ Oil Change System offers on-the-fly oil changes in seconds
Backlit oil reservoir – allows you to view the condition of your oil and system

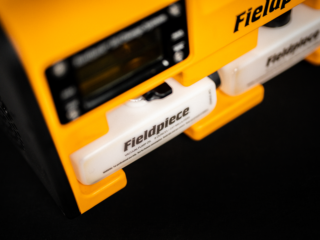

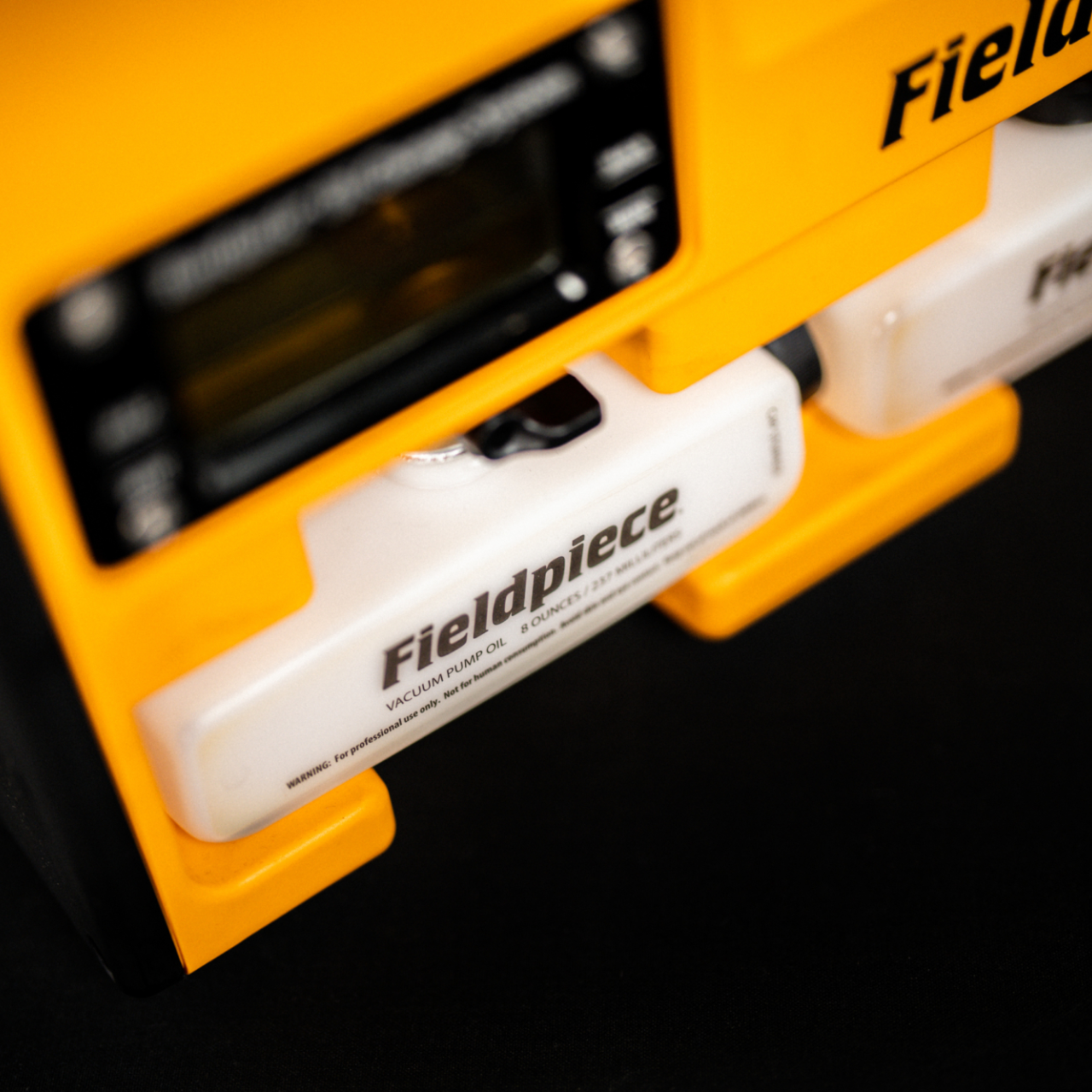

Extra oil bottle storage

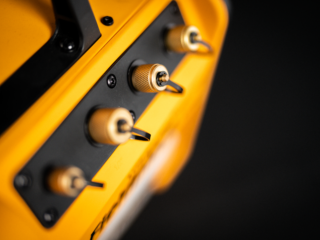

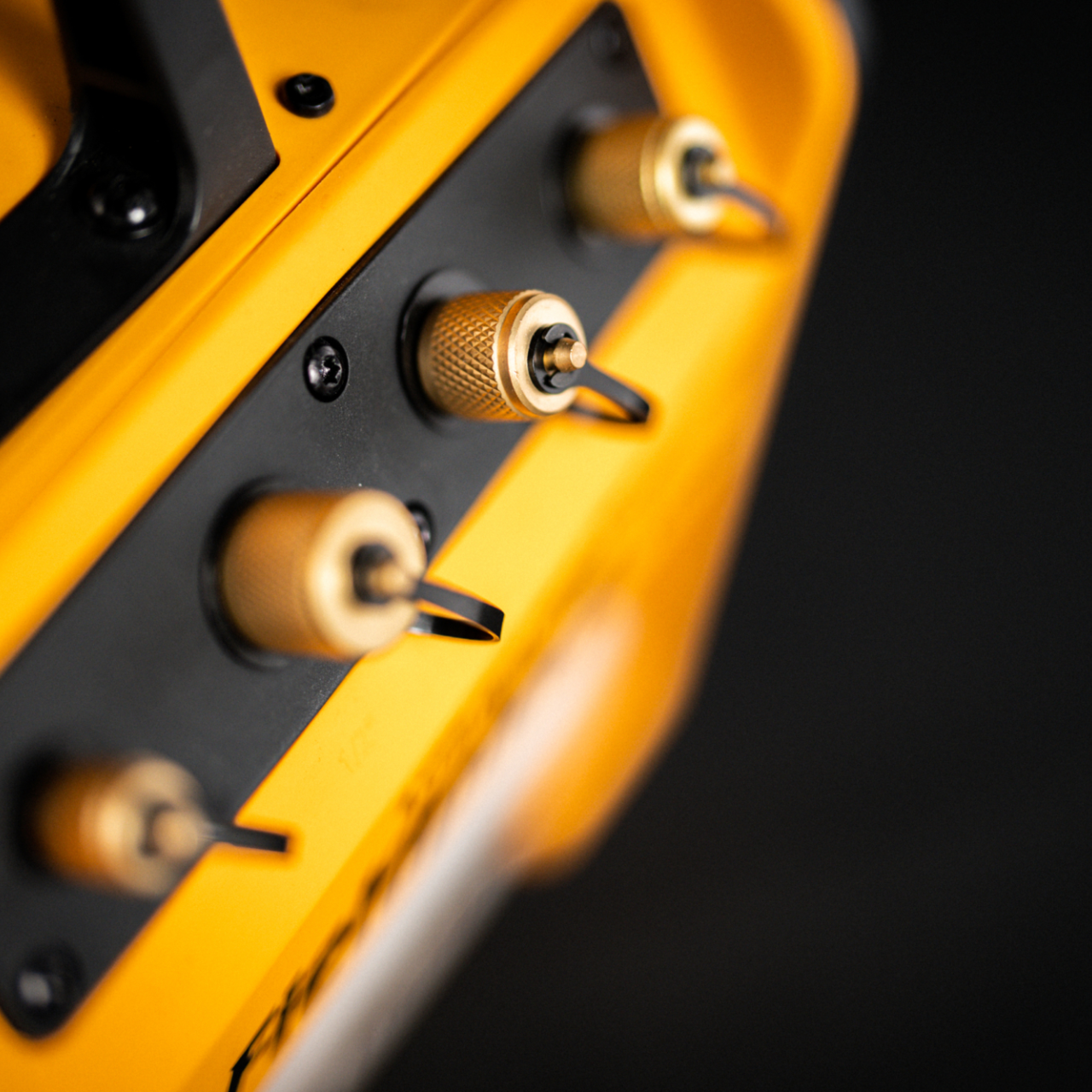

Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
Sturdy base stays upright
Small footprint – 1,346 cubic inches
Weighs 12.25 kg (27 lbs).
Quarter-turn gas ballast with LED indicator
Convenient, removable cord storage
Error messages: indicate wrong power source or other errors

The best keep getting better.

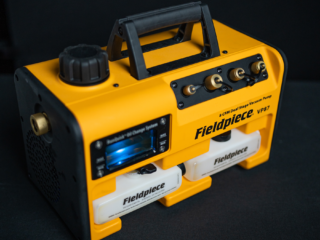

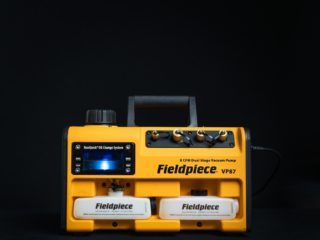

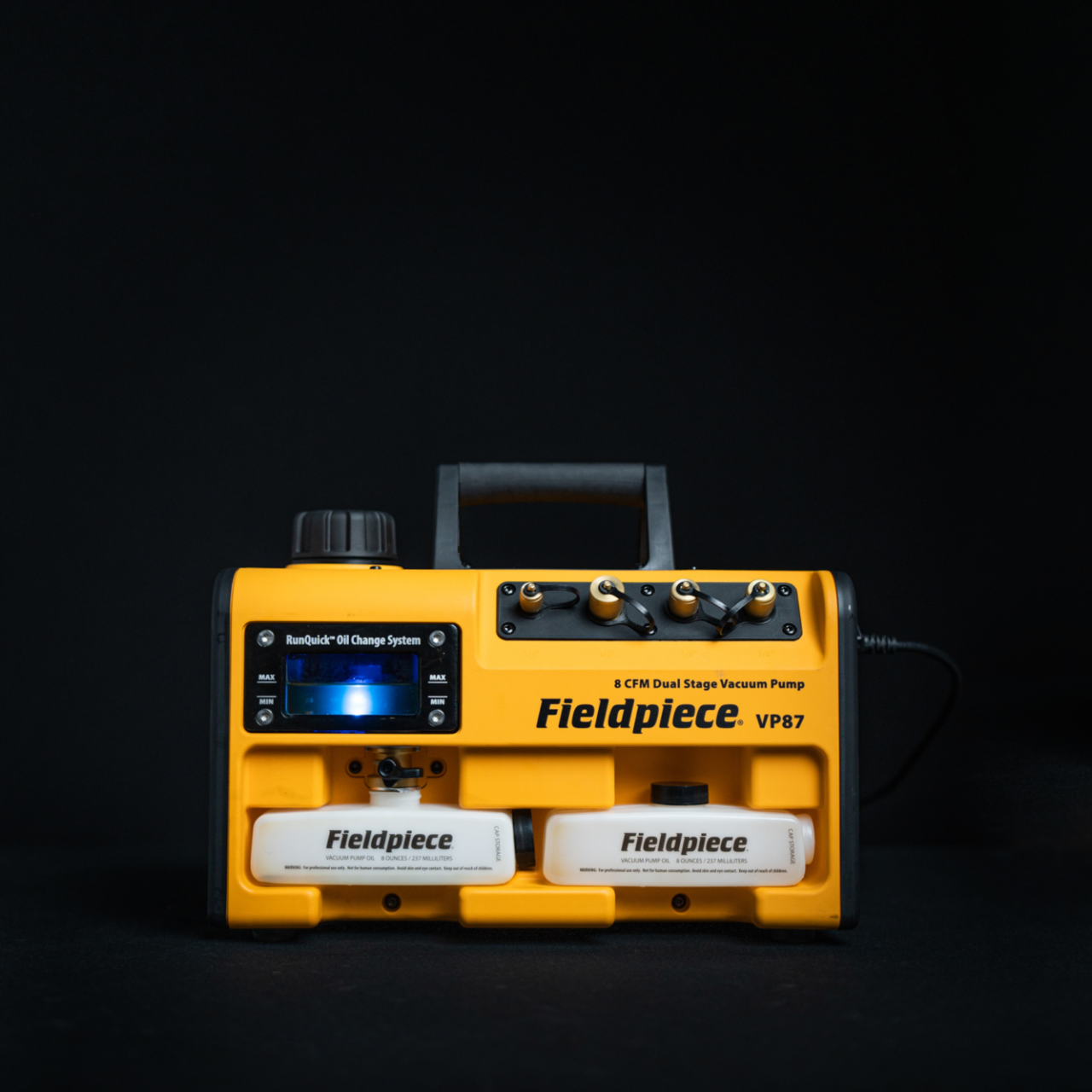

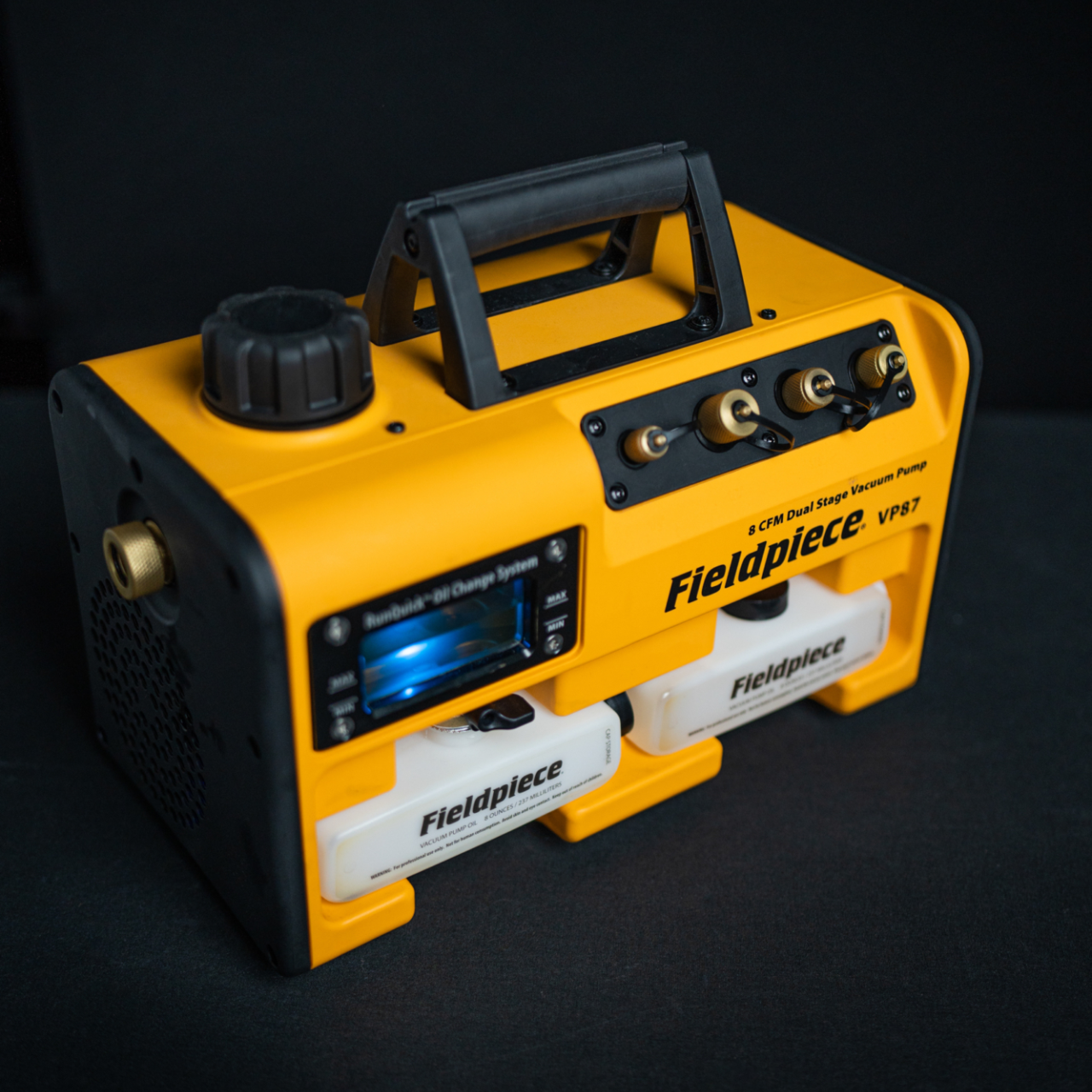

The Fieldpiece VP87 Vacuum Pump shortens evacuation times and saves you time on the jobsite. This lightweight, portable but powerful pump lets you quickly and properly perform system evacuations and its large oil reservoir window gives you a clear view to assess the condition of the oil.

Change oil without losing vacuum.
When you use our RunQuick™ Oil Change System, you can replace oil on the fly in under 20 seconds with no mess and no loss of vacuum.

Use the power you need.
The VP87 Vacuum Pump comes with a ¾ HP DC motor that can even operate on voltage drops that come from long extension cords down to 85V. The pump offers an extra-wide base for stability and four in-line ports so you’ll have easy hose routing for three different size hoses.

Pick up one of the industry’s best pumps.

What’s Included

• (1) VP87 Vacuum Pump
• (2) 8 oz. oil
• (1) Appropriate plug based on country

Specifications

Flow Rate: 8CFM
A2L certified
Oil Capacity: 8oz (237mL)
Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
Fieldpiece part numbers: OIL8X3, OIL32, OIL128
Oil Backlight: Blue LED
Oil Drain: Ball valve
Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”
Compressor: Rotary vane, two stage
Motor: 3/4 HP Brushless DC
RPM: 2500
Power Source: 120 VAC @ 60 Hz 1 phase
Nominal Current Draw: 6.0 AAC
Ultimate Vacuum at Input Ports: 15 microns
Dimensions: 7.9 inch x 11.7 inch x 16.0 inch (201 mm x 296 mm x 406 mm)
Weight: 27 lb / 12.4 kg
Operating Environment: 30°F to 122°F (-1.1°C to 50°C)

Downloads

Manual VP87

What's the difference between the VP67 / VP87 / VPX7?

VP67INT: 6 CFM 170 l/min - 13,15 kg - AC motor - Dual voltage ...................................................................................................................................................................................................................................................................................................................................................... VP87INT: 8 CFM 225 l/min - 12,25 kg - DC motor - 110V or 230V ...................................................................................................................................................................................................................................................................................................................................................... VPX7INT: 10 CFM 280 l/min - 10,9 kg - DC motor with EPO coating** - 110V or 230V

Why is there vapor coming out of the pump?

It is normal for the pump to emit vapor when pumping on a chamber from atmosphere. Since all the air that is removed from the chamber by the pump moves through the oil in the oil reservoir, some of that oil is vaporized when a lot of air is moving through it. When the pressure in the chamber is reduced to a few hundred torr, the oil vapor will be reduced.

How often do I need to change the oil?

We recommend to empty or replace oil at the end of every usage. Don’t leave old oil in the machine. Store the pump and oil in dry clean areas for longest life. The oil can lose its sealing properties if left uncovered. Keep the oil sealed until it’s ready for use.

Do I have to use fieldpiece oil?

No, you can use any manufacturer's vacuum pump oil, however fieldpiece oil is optimized for our vacuum pumps and has a specific viscosity for maximum performance.

Why is my oil cloudy?

Excessive moisture is present in the oil indicating that the oil needs to be replaced.

How do I know that my vacuum pump can pull down sufficiently?

Perform this test to ensure the vacuum pump and your micron gauge are working properly. ...................................................................................................................................................................................................................................................................................................................................................... 1. Connect your vacuum gauge directly to a port on the vacuum pump. ...................................................................................................................................................................................................................................................................................................................................................... 2. Seal the 3 other ports. ...................................................................................................................................................................................................................................................................................................................................................... 3. Ensure the gas ballast is closed. ...................................................................................................................................................................................................................................................................................................................................................... 4. Turn on the vacuum pump to create a vacuum at your gauge. ...................................................................................................................................................................................................................................................................................................................................................... If your gauge measures below 200 microns within 1 minute, you know the vacuum pump and your micron gauge are working correctly. If your gauge does not reach 200 microns, there is a problem with your gauge, the vacuum pump, or both.

What are the sizes of the ports?

The port sizes from left to right are 1/4”, 1/2”, 3/8”, 3/8“.

What is the gas ballast and when do I use it?

A gas ballast valve will allow a flow of air into the final part of the compression cycle and allow the vapor to be expelled without condensation or affecting the pump's overall performance. Using the gas ballast valve on the initial pull down helps the pump run smoothly and keeps the oil in good condition.

Can the vacuum pump pull a vacuum for A3/NH3 refrigerant systems?

The vacuum pumps are certified for A2L refrigerant systems. We do not certify the pump against A3 systems, or systems with NH3 - however, as long as the systems are completely void of refrigerant before evacuation, it can be used on those systems.

Does the Vacuum pump have an anti-suck back oil system?

Yes, The Fieldpiece Vacuum Pumps features a non-mechanical ‘anti-oil suck back’ system which when the machine loses power, will ensure that the oil in the vacuum pump does not migrate into the system or the hose lines. We achieve this by having an ‘open-air’ valve that is sealed when the machine is running, but then slowly opens up to atmospheric pressure when the machine loses power or is switched off. The issue we solve with this feature is the oil-suck back issue which can be very damaging and time consuming to the system should this happen.

What is the final recovery vacuum?

Final recovery vacuum is 14.9" HG

What type of oil is used with the machine?

Mineral oil

How many stages do the vacuum pumps have?

All our vacuum pumps (VP67/VP87/VPX7) have 2 stages.
