ATB1 - Type-K Thermocouple

The ATB1, Type-K bead thermocouple is used to take temperatures of air, surfaces, or liquids up to 204°C (400ºF). Use the ATB1 for outdoor dry bulb temperatures when finding target superheat. The ATB1 can be used with any of our meters that measure temperature and any thermometer accepting a Type-K thermocouple.

Overview

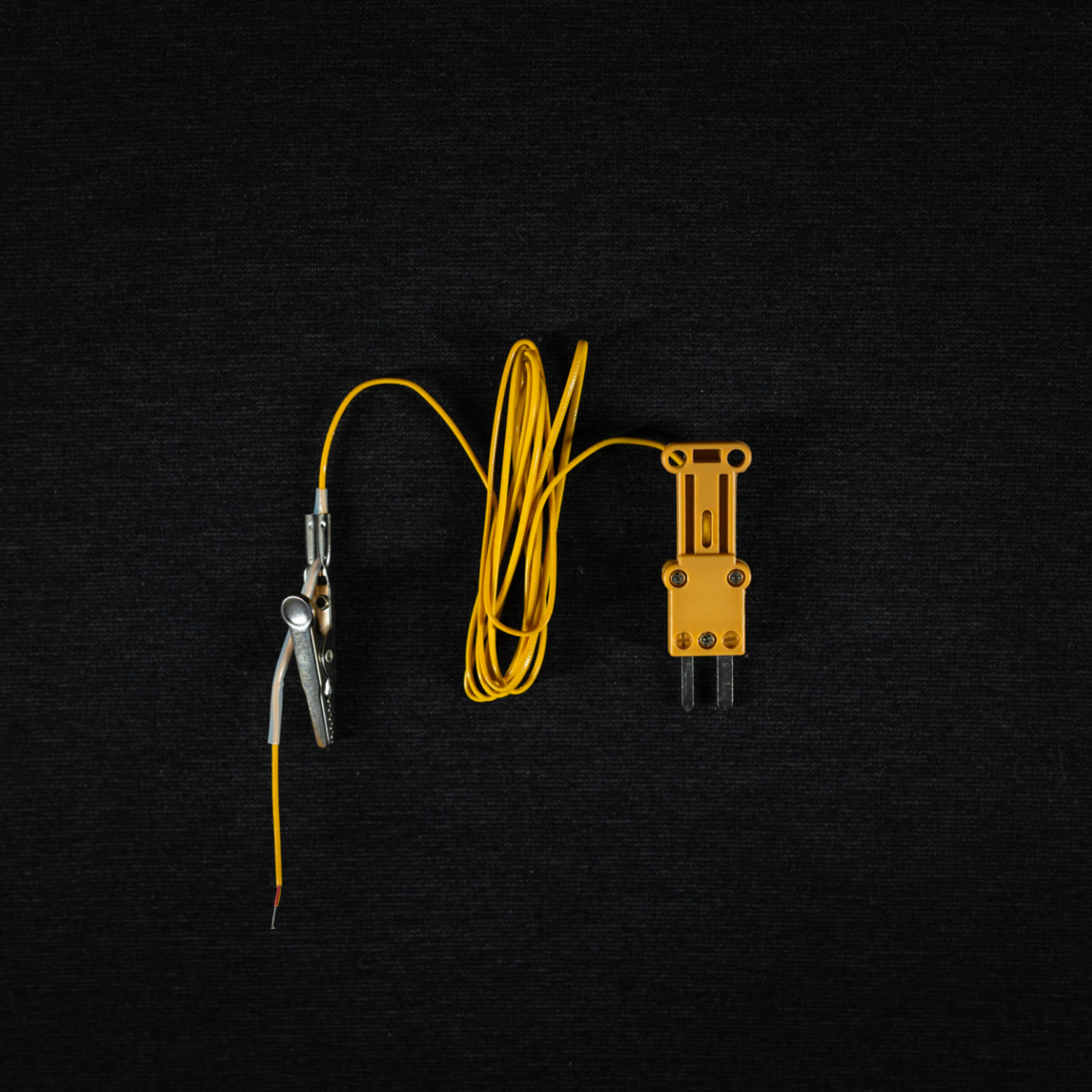

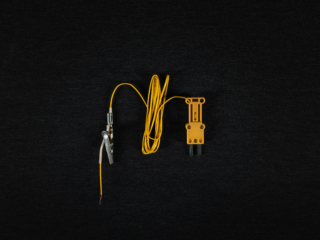

The ATB1, Type-K bead thermocouple is used to take temperatures of air, surfaces, or liquids up to 204°C (400ºF). Use the ATB1 for outdoor dry bulb temperatures when finding target superheat. The ATB1 can be used with any of our meters that measure temperature and any thermometer accepting a Type-K thermocouple.

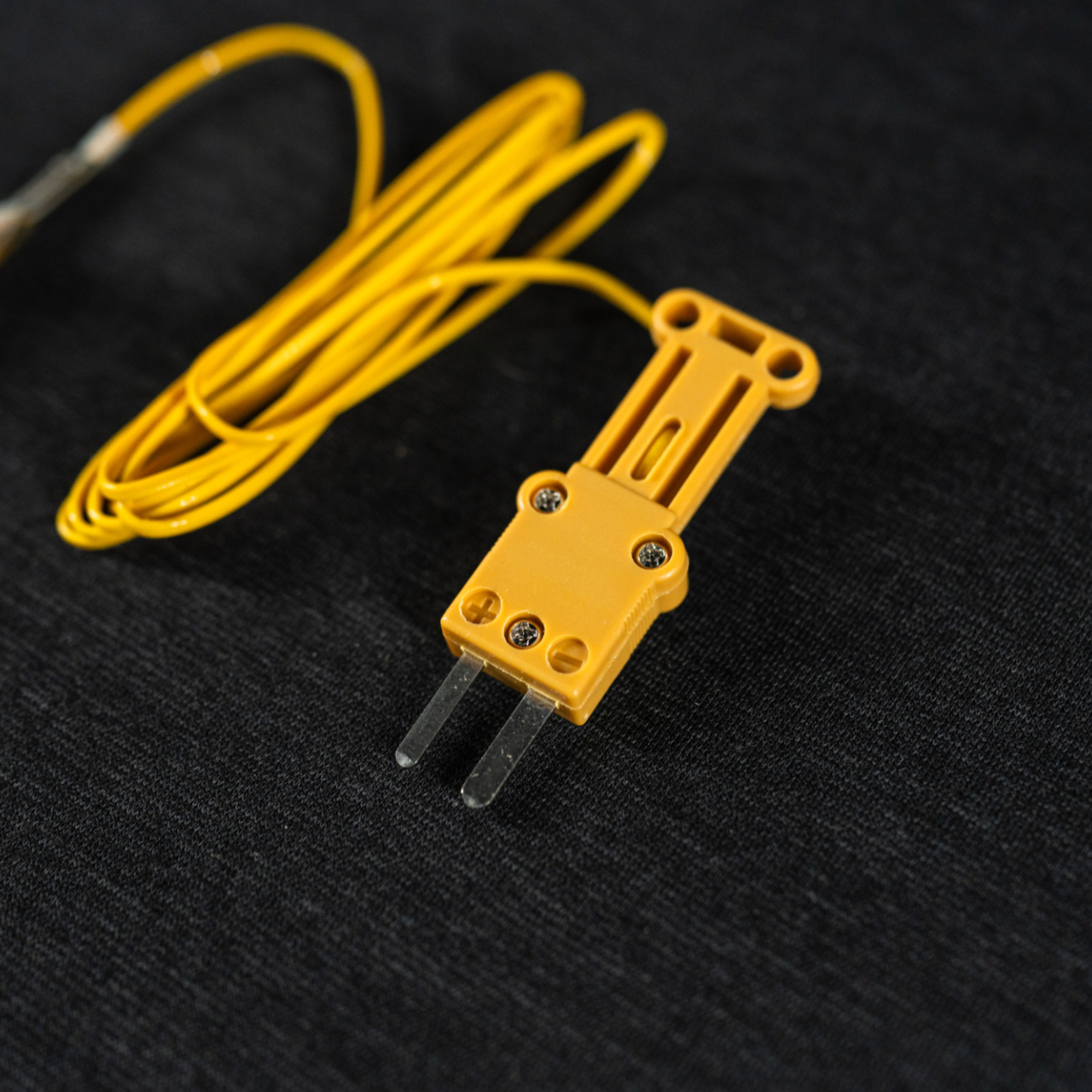

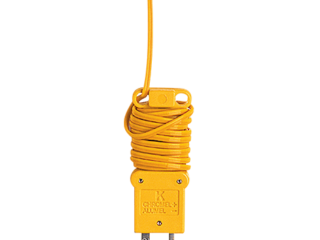

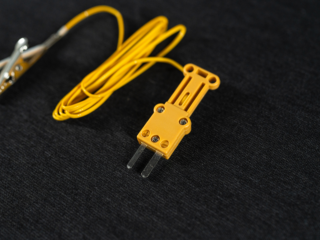

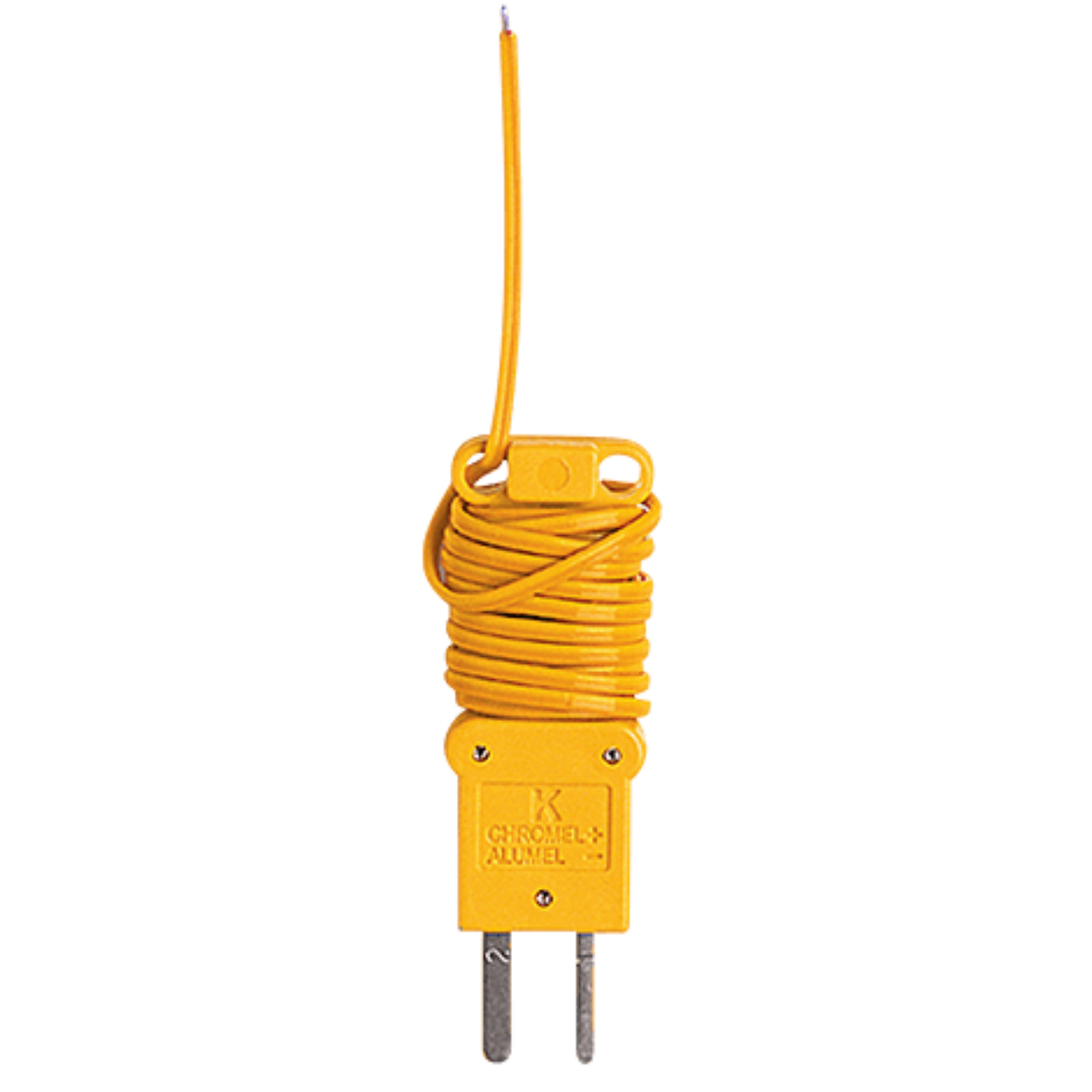

The wrap-tab allows the thermocouple wire to conveniently store on the plug. Just wrap the excess wire around the wrap-tab and feed it through one of the eyes. Keep a few of them set at different lengths for fast, job-specific, switching between thermocouples. No more tangled messes in your tool bag.

SPECIFICATIONS

Accuracy: 2°C (+/- 4ºF ); ± 0.5°C (1°F) after field calibration, 0 to 80°C (32 to 176ºF)Temperature range: -46 to 204°C (-50 to 400ºF)Thermocouple conductors: Type-K nickel chromium/nickel aluminum.Probe insulation: Calibration and atmosphere will affect maximum useful temperature in applications. The wire insulation is designed to withstand a maximum continuous use at 204°C (400°F)Plug: Type-K thermocouple male mini plug.
