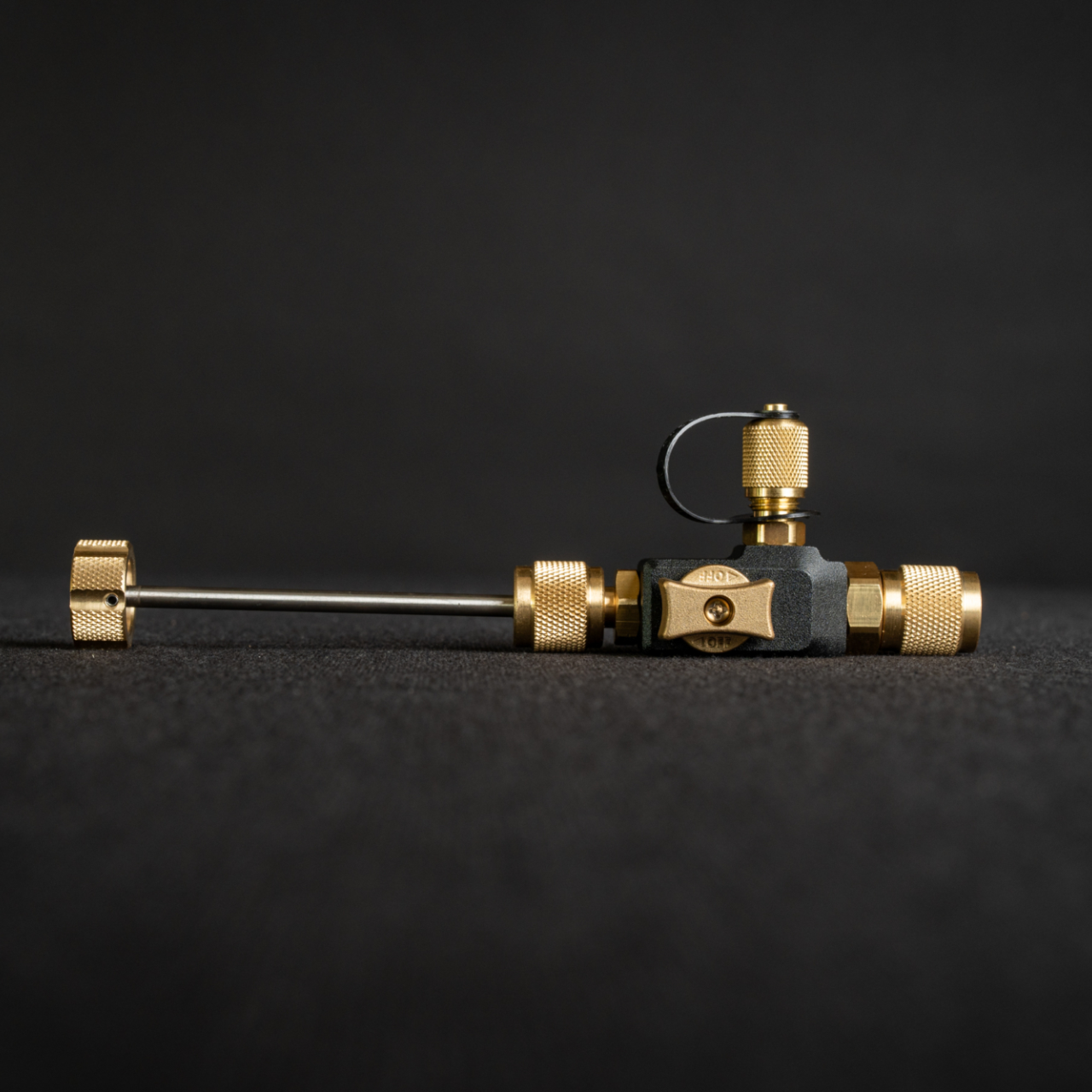

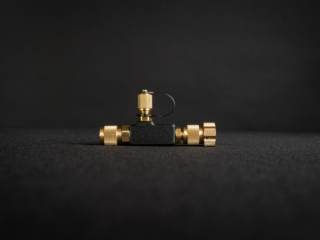

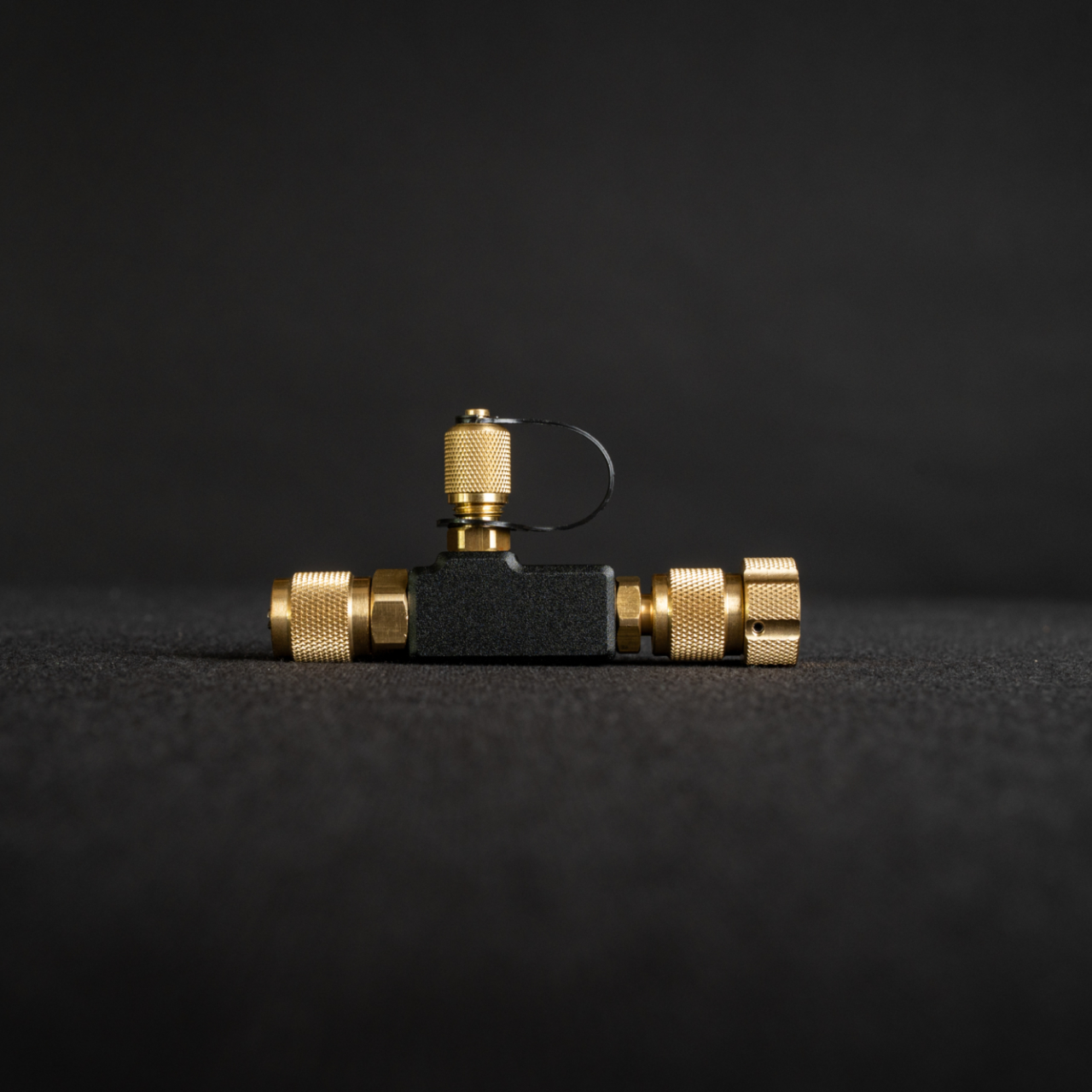

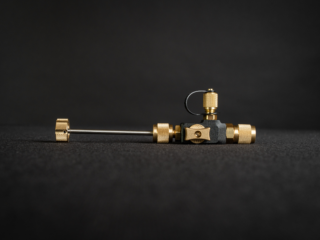

VC1E - 1/4" and 5/16" Valve Core Removal Tool

Fieldpiece offers a compact and convenient VCRT.

- Swap the standard 1/4" for 5/16" port fittings
- Capture rod for reliable engagement with the valve core
- Magnetic cap for convenient placement on-site
- Vacuum-rated to 20 microns
- A2L compatible

With the convenient and compact VC1E, you can access tight spaces and never have to worry about lost valve cores.

Overview

Three reasons why you need the VC1E

1. One VCRT for every job

Our VC1E is the only VCRT you need for every job. Thanks to its swappable port fittings, the VC1E can be taken to any job and be your perfect sidekick.

2. Reliable and accurate

Lock in the valve core in just one try! The easy to use capture rod system reliably engages with the valve core so you can get it the first time, every time. Lost valve cores are in the past with our VC1E. On top of that, the VC1E is designed for vacuum-ratings down to 20 microns and it's compatible with A2L refrigerants.

3. Convenient sidekick

Take the VC1E to all of your jobs! Wherever you are on-site, you can always conveniently place the VCRT because of the magnetic cap. On top of that, the swappable 5/16" and 1/4" port fittings ensure you can use your VC1E for every job! Always have your valve core removal tool on hand with our VC1E.

Specifications

Product

  • A2L compatible
  • Vacuum rating: 20 microns / 0.027 millibar / 0.020 Torr
  • Maximum working pressure: 55 Bar / 800 psi
  • Dimensions: 107.95 mm x 39.62 mm x 38.10 mm
  • Weight: 272 g

Included in package

  • 1/4″ Female service port fitting standard, 5/16” fitting included
  • 1/4” Male side port with removable valve core
