Overview
Two reasons why you need the SPK3
1. Quick measurements
The SPK3 takes in-duct, ambient temperatures and registers them. The tool can access almost any common system because of its compact build.
2. T1-T2 calculations
The SPK3 makes your job a whole lot easier by supplying you with T1-T2 calculations across both ROD and IR. Taking the temperature has never been this easy.
Specifications
Product
- Probe length: 94mm long
- Operating environment: 0°C to 40°C (<90% RH)
- Storage environment: -10°C to 60°C (<70% RH)
- Battery: 2 x AAA (installed)
- Battery life (alkaline): 40 hrs (IR), 750 hrs (ROD)
- Auto-off: 3 min, 15 min (T1-T2 mode)
- IR range: -30°C to 500°C
- Best resolution: 0.2°C
- Accuracy: (@23°C, <80%RH, calibrated @ 30cm)±2°C (-30°C to 0°C);±1.5°C (0°C to 10°C);±1°C (10°C to 40°C);±1.5°C or 1.5% of rdg,
- Field of view (D:S): 8:1
- Response time: 0.5 seconds
- Wavelength: 8µm to 14µm
- Emissivity: E=0.95
- Rod range: -40°C to 125°C
- Best resolution: 0.1°C
- Response time: 20 seconds
Included in package

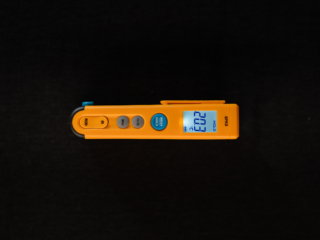

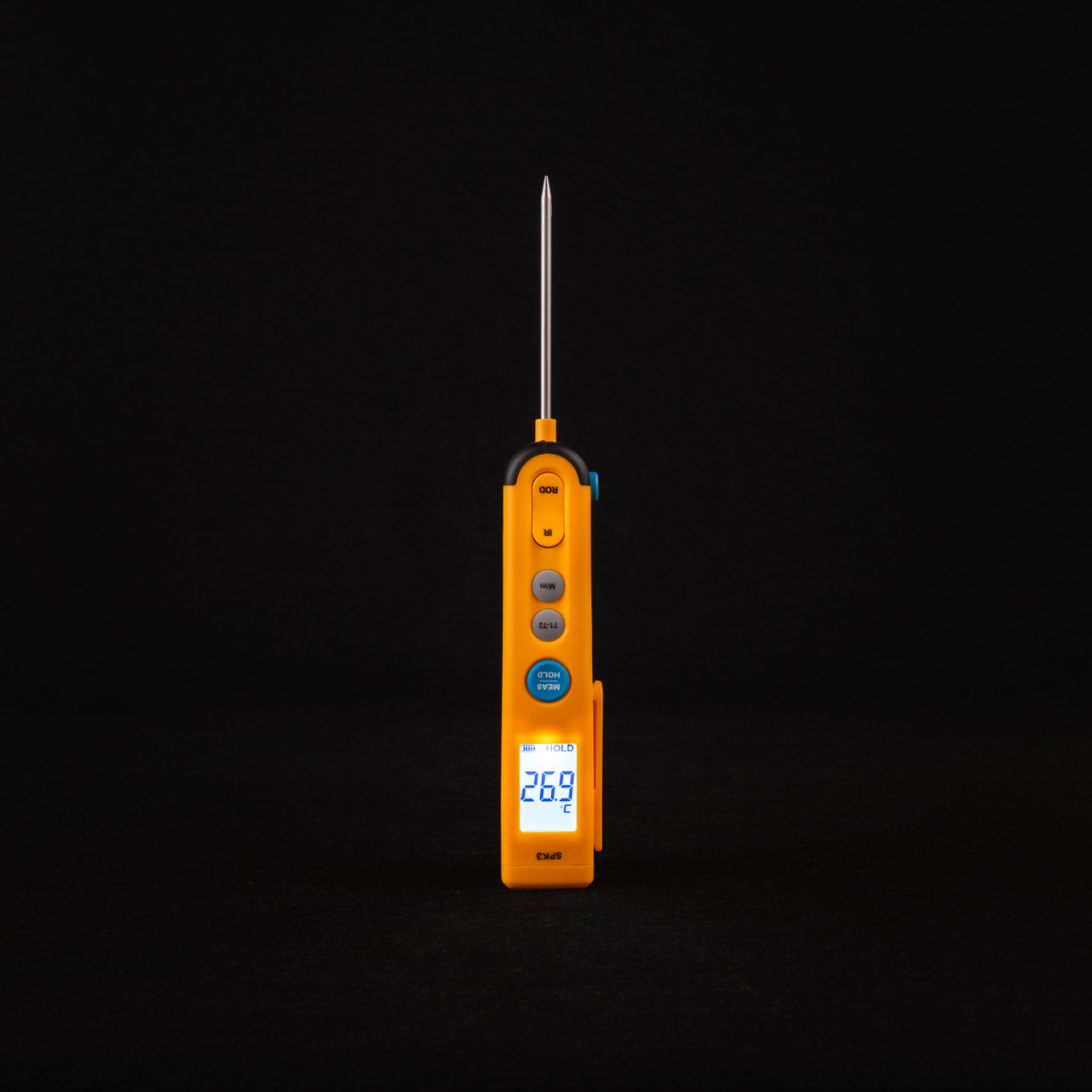

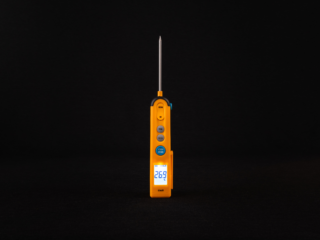

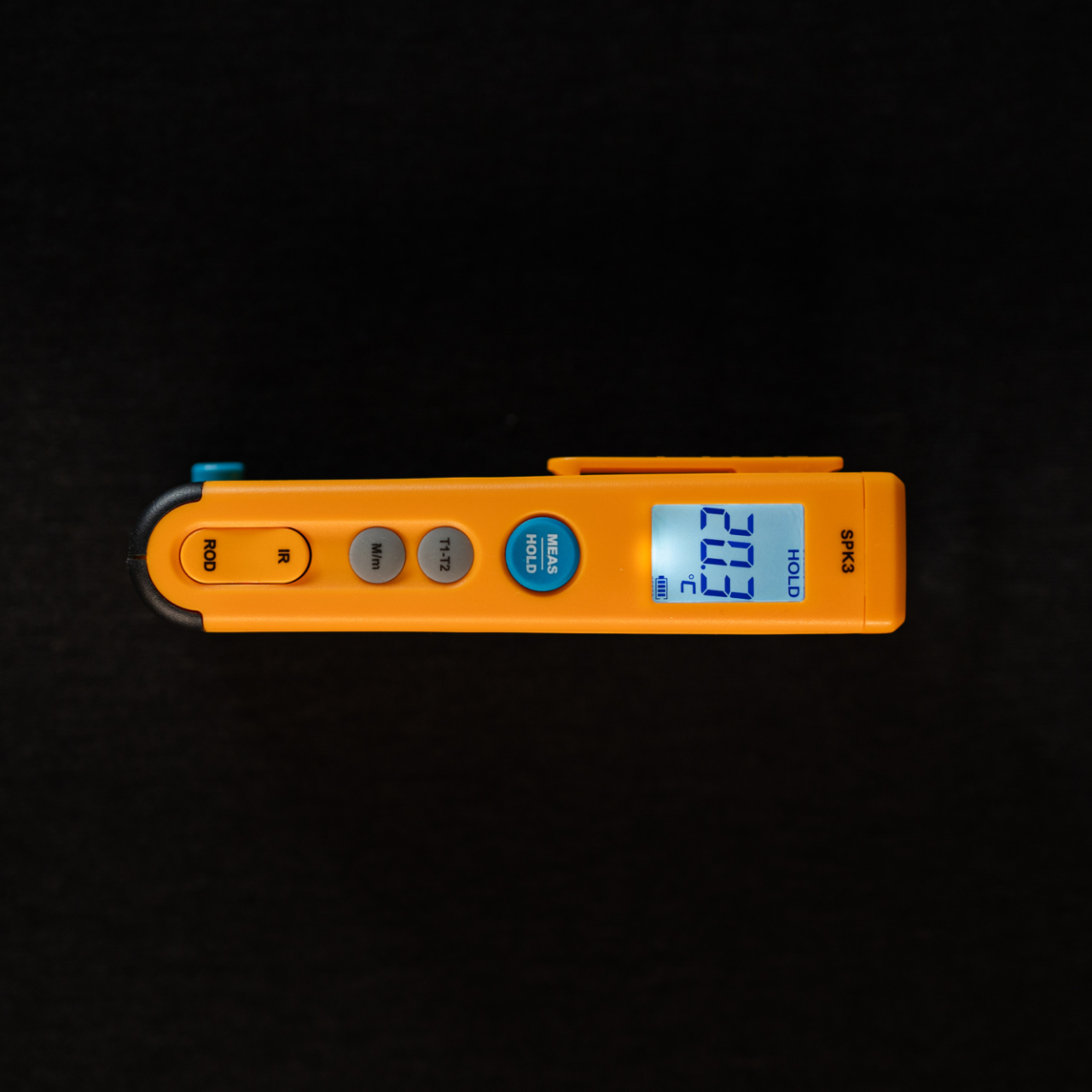

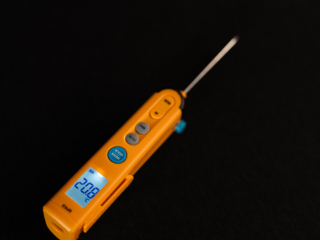

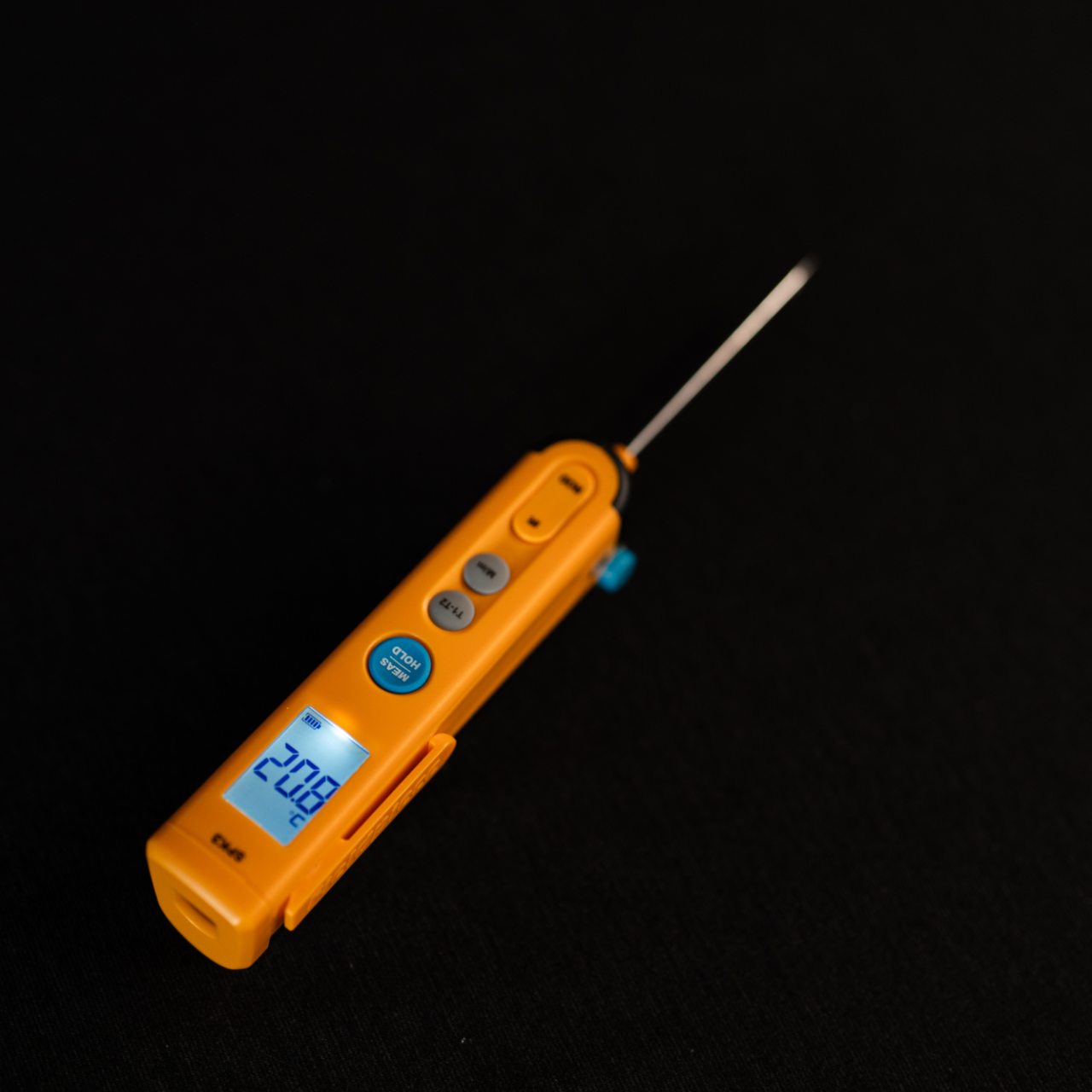

- SPK3 - Compact Type K Thermometer
- 2x AAA Batteries
