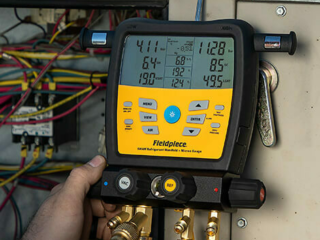

Overview
Four reasons why you need the SM480VINT
1. Integrate with Job Link® tools
The wireless SM480VINT is the heart of every job as the Digital Manifold. All the Job Link® tools can be connected to the SM480VINT and with a 300m wireless range, you can find real-time, accurate measurements of all the Job Link® tools right on your Digital Manifold. The on-board data logging feature (of up to 7 days) streamlines your job and makes sure you can provide the customers with all the answers they need.
2. Support A1, A2L and A3 refrigerants
The SM480VINT has been designed to work with A1, A2L, and A3 refrigerants and blends to comply with F-gas regulations. This high-tech Digital Manifold does not only help you do your work easier, faster, and better, but it also supports the environment.
3. Reliable and accurate
Because of the temperature compensated system tightness test, you never have to worry about inaccurate measurements. On top of that, the built in vacuum gauge provides you with all the vacuum related information you need to know.

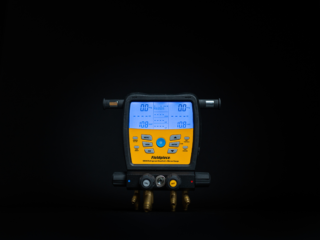

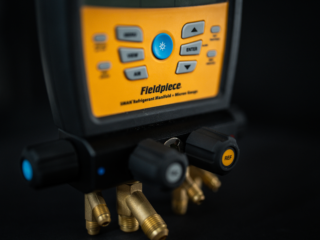

4. Heavy duty design
Robust and reliable. The heavy duty casing, reinforced hook, IP54 water resistance rating, and impact resistant light up screen ensure the SMAN® is able to withstand any condition so you can keep doing your job easier, faster, and better.
To connect your SMAN® Digital Manifold to your SR47INT, please make sure you are using the latest software.
Software Download
Specifications
Product
- Display: LCD (12,7cm diagonal)
- Backlight: Blue (adjustable duration)
- Low Battery Indication: is displayed when the battery voltage drops below the operating level.
- Auto Power Off: 30 minutes of inactivity (adjustable)
- Maximum Manifold Pressure: 800 Psig (5500 kPa)
- Battery Type: 6 x AA alkaline
- Battery Life: 350 hours typical (without vacuum, backlight, and wireless)
- Radio Frequency: 2.4 GHz
- Wireless Range: 300 meters line of sight
- Distance decreases through obstructions
- Data Port: Micro USB (for extracting data logs or updating firmware)
- Operating Environment: 0°C to 50°C at <75% RH
- Storage Environment: -20°C to 60°C at <80% RH (with battery removed)
- Temperature Coefficient: 0.1 x (specified accuracy) per °C (0°C to18°C, 28°C to 50°C)
- Weight: 1.83 kg
- Water Resistant: Designed to IP54
Included in package
- SM480VINT
- (2) TC24 Wired Type-K Pipe Clamp Thermocouple
- (1) ATA1 Type-K Bead Thermocouple with Clip
- (1) ANC11 Padded Drawstring Case
Frequently Asked Questions
What other fieldpiece wireless products connect wirelessly to the manifold?
The SM480 and SM380 are compatible and can connect wirelessly to the following:
- JL3RH Psychrometer ......................................................................................................................................................................................................................................................................................................................................................
- JL3PC Pipe Clamp ......................................................................................................................................................................................................................................................................................................................................................
- JL3LC Large Pipe Clamp ......................................................................................................................................................................................................................................................................................................................................................
- SRS3 Weighing Scales ......................................................................................................................................................................................................................................................................................................................................................
- MG44 Vacuum Gauge ......................................................................................................................................................................................................................................................................................................................................................
- SRS3EC Weighing Scales .....................................................................................................................................................................................................................................................................................................................................................
- SRS47 Weighing Scales .....................................................................................................................................................................................................................................................................................................................................................

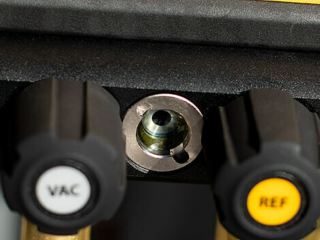

How do I clean my manifold?
Cleaning the Sensors in the manifold over time is required, the pressure sensors inside the manifold may become contaminated with dirt, oil, and other contaminants in normal operational use. To do so, please follow the guide below: ......................................................................................................................................................................................................................................................................................................................................................
1. Never use an object such as a cotton swab to clean the sensor, you may cause damage to the sensor. ......................................................................................................................................................................................................................................................................................................................................................
2. Open all valves and cap all the ports except for the VAC port on the SM480, or the central port on the SM380. ......................................................................................................................................................................................................................................................................................................................................................
3. Drop enough Isopropyl (rubbing) alcohol into the VAC/middle port using an eye dropper or funnel so that it can flush out contaminants. ......................................................................................................................................................................................................................................................................................................................................................
4. Cap VAC/middle port and gently shake your Manifold upside down to clean sensor.
......................................................................................................................................................................................................................................................................................................................................................
5. Turn right side up. Open a port to pour out the rubbing alcohol and open all ports to allow sensors to dry out. Drying usually takes about an hour. Repeat if necessary if issues persist.
Can I use the SM380/SM480 with A2L and A3 refrigerants?
The manifold has a list of over 70 common refrigerants used in refrigeration and air conditioning, and this includes A2L and A3 refrigerants. For the full list of refrigerants visit the product page.
Why does my vacuum pressure jump up when I turn off my vacuum pump?
The moisture inside the system is still boiling off and is no longer being taken out or compensated for by the vacuum pump.
There could be oil that is holding moisture inside either the hose leading to the manifold or inside the block of the manifold.
Why does my vacuum pressure jump up when I close my high side & low side?
You have isolated the micron gauge from the system, you are now only reading what is inside your manifold and the hose connected to vacuum pump.
What is the operating pressure range?
29" HgV to 800 psig/ 55 bar. 1-10.000 microns.
Why does my superheat/subcooling read -o/l?
You may have a negative degree of superheat or subcooling. To check this see below: ......................................................................................................................................................................................................................................................................................................................................................
1. Plug in thermocouple into LLT port and change refrigerant to R113 to check to see if the manifold calculates subcooling. ......................................................................................................................................................................................................................................................................................................................................................
2. Plug in thermocouple into LLT port and change refrigerant to R407F to check to see if the manifold calculates superheat.
Why is my vacuum pressure inaccurate?
Vacuum pressure being inaccurate is a sign of oil holding moisture either inside the block of the manifold or in the hoses. The oil in your vacuum pump may also need to be changed.
Clean sensor periodically with rubbing alcohol.
Why does it say "NSG" in the "THS - TargetSuperHeat" box?
It stands for “no signal” (NSG).
How to perform advance pressure calibration?
Advanced Calibration: ......................................................................................................................................................................................................................................................................................................................................................
1. Plug in thermocouple into SLT port. ......................................................................................................................................................................................................................................................................................................................................................
2. Calibrate Thermocouple to Ice water 0°C. ......................................................................................................................................................................................................................................................................................................................................................
3. Tape thermocouple to side of refrigerant tank that has been sitting at a constant temperature for 24-48 hours. ......................................................................................................................................................................................................................................................................................................................................................
4. Put a brass cap on SLT and another one on LLT and open up both valves. ......................................................................................................................................................................................................................................................................................................................................................
5. Hook up refrigerant tank to manifold and open the tank. (Ensure that the Vac valve is closed on manifold before opening refrigerant tank. 4 port manifold only.) ......................................................................................................................................................................................................................................................................................................................................................
6. Open refrigerant tank. ......................................................................................................................................................................................................................................................................................................................................................
7. Select the type of refrigerant being used for this on the manifold. ......................................................................................................................................................................................................................................................................................................................................................
8. Open up the Ref port on manifold (4 port manifold only). Both high and low pressures should read the same. ......................................................................................................................................................................................................................................................................................................................................................
9. Press “Test Cal” button. Both pressure sensors should read “GOOD”."
What is the wireless range?
300 meters line of sight.
Which refrigerants are compatible with the SM380VINT and SM480VINT manifolds?
A full list of refrigerants can be found in our user manual. Additional refrigerants can be uploaded to the manifold via regular software updates. Check our Software Update page on the website.
