Overview
Three reasons why you need the MR45UK
1. Adjust motor performance automatically
With on-board system monitoring, this recovery machine is able to automatically adjust motor performance from 2000 to 3000 rpm to handle liquid and run twice as fast on vapor. This means that liquid slugging is minimized and vapor recovery is maximized, and with a 1,23 kg per minute recovery speed, the MR45UK makes the recovery part of every job super quick.
2. Lightweight and portable
With a powerful presence on the job site, the MR45UK is still a very lightweight and portable player that is compatible with A2L refrigerants. With only 10kg to carry, the MR45UK can easily be taken anywhere on site.
3. Easy-to-use

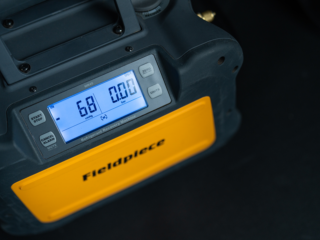

Because of the single dial valve that the MR45UK comes equipped with, you no longer have to think about three or four valves in one system. Simply turn the dial to the setting you need and you’re good to go. And not to forget, the measurements are easily viewable on the LCD display, ensuring you can read the information you need anywhere.
Specifications
Product
- Display: 2 x 10000 count LCD with status messages
- Backlight: Blue color
- Measurement rate: 3.3 times per second, nominal
- Auto-stop Levels: 0 bar (default), -0.34 bar, -0.68 bar,(0 psig, -10 inHg, -20 inHg, 0 kPa, -25 cmHg, -50 cmHg)
- Input Port Pressure Sensor Range:-1 bar to 41 bar (-30 inHg to 600 psig)
- Output Port Pressure Sensor Range:-1 bar to 41 bar (-30 inHg to 600 psig)
- High Pressure Cutoff: 38.5 bar, 3850 kPa (558 psig), nominal
- Pressure Relief Valve: 42 bar, 4.2 MPa (609 psig), nominal
- Resolution and Units: 0.05 bar (2 cmHg), 0.01 MPa (2 cmHg),0.05 bar (0.03 bar) 5 kPa (2 cmHg), 1 psig (1” Hg)
- Pressure Sensor Accuracy:± 0.02 bar, ± 1.3 cmHg, ± 0.5 inHg (Vacuum)± (0.6% of reading + 0.14 bar), ± (0.6% of reading +2 psig)
- Final Recovery Vacuum: -0.51 bar, -38 cmHg, -14.9 inHg
- Compressor: Twin cylinder reciprocating (oil-less)
- DC Motor: 746 Watt (variable smart speed)
- Power Source: 95 to 130 VAC @ 50 Hz 1 phase
- Nominal Current Draw: 12.0 A
- Valve: Single dual-route ball valve
- Input Port Filtration: 9 mm mesh screen, stainless
- Noise: Sound pressure level <70 db(A)
- Dimensions: 376 mm x 250 mm x 344 mm (14.8” x 9.8” x 13.5”)
- Weight: 10 kg (22 lbs)
- Operating Environment: 0°C to 43°C (32°F to 109°F)
- Storage Environment: -20°C to 60°C (-4°F to 140°F)
- Approved Refrigerants: R12, R22, R32*, R134A, R143A*, R401A,R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C,R407D, R408A, R409A, R410A, R448A, R452A, R454B*, R500, R502,R507, R509, R1234YF*, R1234ZE** Class A2L (mildly flammable) refrigerants
Included in package
- MR45UK - Digital Recovery Machine
- Appropriate plug based on country
Frequently asked questions
Is the MR45INT/MR45UK dual voltage?
How do I clean my recovery machine?
What is the high pressure cut-out set to?
Do I need to use a filter drier?
Is the MR45INT/MR45UK A3 approved?
Is the MR45INT/MR45UK A2L approved?
What is the over pressure protection on the recovery machine?
At what negative pressure will the recovery machine cut off?
